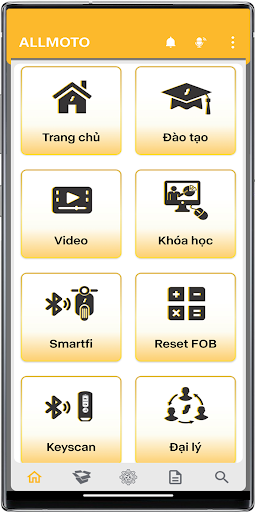

ALLMOTO is a large application that integrates many functions, used for customers who are repairmen, maintenance and care centers for motorcycles and motorbikes.
The application integrates the function of intelligent error diagnosis for motorcycles and motorbikes - SMARTFi2. Diagnostic support with specialized functions:
1. Engine system diagnosis, ABS electronic brake
2. Smartkey smart lock system
3. Immobilizer security system
4. ODO electronic clock system
5. LED technology system
6. Remap technology, custom tuning engine ECU
7. Oscilloscope pulse display
8. Sensor signal simulation
9. Sensor test
10. Actuator test
11. Battery quality test

The application is a huge digital library storing all repair manuals, electrical circuits, for all basic motorbike brands in the Vietnamese market

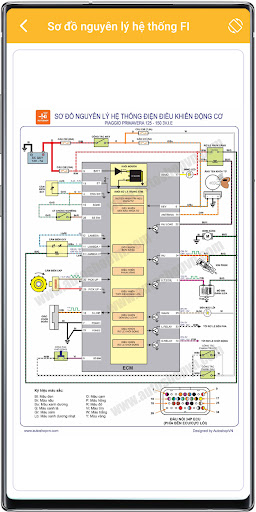

Especially with the "Circuit Diagram" lookup function - The perfect piece for supporting the repair of electrical systems on motorbikes and motorbikes. Synthesize all Autoshop diagrams drawn separately according to each system of 6 car brands: HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI, SYM and KYMCO. With advantages such as:
• Circuit diagrams of each system are easy to view, easy to analyze and repair
• The diagram shows the power supply, input and output signals, and actuators
• Standard drawing diagrams according to each wire color according to each specific car model help analyze and check for faulty pans
• On the circuit diagrams of the main systems such as PGM FI, ABS, Smartkey clearly show the signal types, standard voltages of sensors and actuators, making it easy to measure
• In particular, the circuit diagram is enough for all car brands: HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI, SYM and KYMCO.

The diagram is broken down by each system as follows:
• PGM - FI engine system schematic diagram
• Smart Key smart lock system schematic diagram
• ABS brake system schematic diagram
• Power supply circuit schematic diagram
• Lighting circuit schematic diagram
• Horn circuit schematic diagram
• Brake light circuit schematic diagram
• Ignition circuit schematic diagram
• Vehicle speed schematic diagram
• Starter circuit schematic diagram
• Temporary engine cut-off circuit schematic diagram
• Charging system schematic diagram

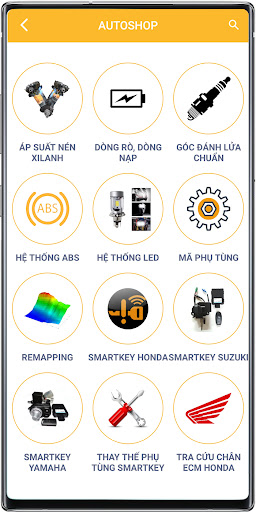

In addition, the application also includes full reference documents of the manufacturer such as:
• Engine system electrical circuit schematic diagram
• ABS anti-lock braking system schematic diagram
• Smartkey smart lock system schematic diagram
• LED control system schematic diagram
• Look up the location of components, sensors and details on the vehicle
• Repair manuals, assembly diagrams, mechanical disassembly instructions
• Look up ODO electronic clock connection diagram
• Look up the connection diagram of the smart key controller
• Look up the connection location to check the LED system
• Look up the meaning of the map, the list of ECM codes that support remap
• Look up the content of the engine system error code, smart key and ABS
• Look up the pin diagram of the engine controller (ECM)
• View the pin diagram of the Smart key controller (SCU)
• View the pin functions of the ABS brake system controller
• Look up the pin functions of the electronic clock
• Look up the standard cylinder compression pressure, leakage current, charging current, standard ignition angle, spare part code
• Video instructions for using devices such as SMARTTOOL2, SMARTTOOL ECO, REMAPTOOL, KEYSCAN
